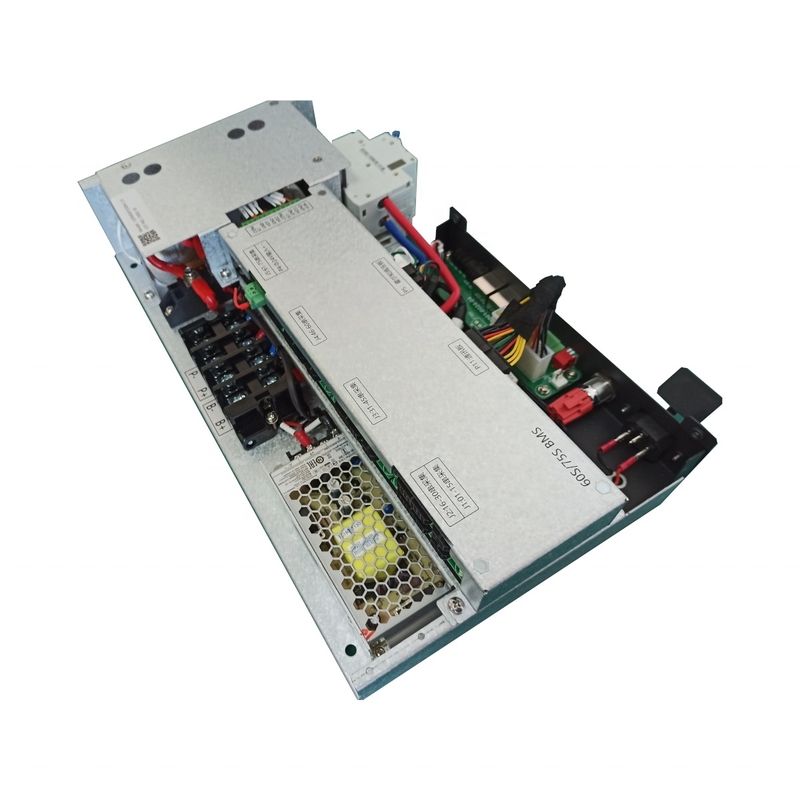

75S 100A BMS for Lifepo4 Battery Packs 240V Master-Slave Design

Name: 75S 100A BMS for Lifepo4 Battery Packs 240V Master-Slave Design
Brand: Hunan GCE Technology Co.,Ltd
SKU: RBMS07S75S100A
Price: 532.00 USD
Availability: InStock

Produkt-Details

Herkunftsort: Hunan, China

Markenname: GCE

Modellnummer: RBMS07S75S100A

Zahlungs-u. Verschiffen-Ausdrücke

Min Bestellmenge: 2

Preis: $494-570

Erhalten Sie besten Preis

Produkt-Details

Produkt-Beschreibung

Hervorheben:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Lifepo4 battery BMS 100A, 240V master-slave BMS, 75S BMS with warranty


Aktueller Bereich:	-100--100a	Systemspannung:	0 - 240 V DC
Startmodus:	DC -Start (optionaler AC- und DC -Starter)	Batterie-Streifen:	75 s （5 x 15 s）
Art der Bilanz:	Gleichstellung des passiven Widerstands	Gleichgewichtsstrom:	100 mA ± 10 mA (Einzelzelle 3,4 V)
Temperaturabtastung:	12 Batterietemperatur (4*3)	Probieren von Genauigkeit:	± 2℃
Spannungsgenauigkeit:	Einzelzelle ±20mV	Kommunikationsmöglichkeiten:	Can, RS485, Bluetooth, GPRS, trockener Kontakt
Hallensensor:	100a	Maximale Last:	Steady-State: 100A, transienter Zustand: 150a/10s (einstellbar)
Betriebstemperatur:	Ladung: -10 ～ 75 ℃, Entladung: -20 bis 75 ℃, Speicher: -40 bis +75 ℃	Abmessungen:	W410H232D128CM
Genauigkeit:	≤ 5%

Aktueller Bereich:	-100--100a
Systemspannung:	0 - 240 V DC
Startmodus:	DC -Start (optionaler AC- und DC -Starter)
Batterie-Streifen:	75 s （5 x 15 s）
Art der Bilanz:	Gleichstellung des passiven Widerstands
Gleichgewichtsstrom:	100 mA ± 10 mA (Einzelzelle 3,4 V)
Temperaturabtastung:	12 Batterietemperatur (4*3)
Probieren von Genauigkeit:	± 2℃
Spannungsgenauigkeit:	Einzelzelle ±20mV
Kommunikationsmöglichkeiten:	Can, RS485, Bluetooth, GPRS, trockener Kontakt
Hallensensor:	100a
Maximale Last:	Steady-State: 100A, transienter Zustand: 150a/10s (einstellbar)
Betriebstemperatur:	Ladung: -10 ～ 75 ℃, Entladung: -20 bis 75 ℃, Speicher: -40 bis +75 ℃
Abmessungen:	W410H232D128CM
Genauigkeit:	≤ 5%

75S 100A BMS for Lifepo4 Battery Packs 240V Master-Slave Design

75S 100A Unique Design BMS Lithium Battery Management System

240V BMS for Lifepo4 Battery Pack ESS UPS Solar Home Energy

Key Specifications

75S 100Amp integrated BMS solution

Communication Protocol

CAN, RS485, Bluetooth, GPRS, Dry Contact

Design Features

Master & Slave all in one design
Highly efficient, stable and reliable
Compact dimensions: W410 × H232 × D128cm

Unique Design

The latest product developed by GCE, featuring unique market-leading design.

For 30S-75S Lithium Battery Packs

Integrated BMS supports 30S-75S lithium battery packs with master-slave integrated design and relay solution, ideal for multiple strings of small capacity batteries (less than 100Ah), significantly reducing user costs.

Technical Specifications

Product Name	Integrated BMS (master slave together in one)
Model no.	RBMS07S60S50A
System voltage range	0 - 240 V DC
Startup mode	DC start (optional AC and DC starter)
Number of battery strings	75 S（5 x 15 S）
Balance type	Passive resistance equalization
Balanced current	100mA ± 10mA (Single cell 3.4V)
Temperature Sampling	12 Battery temperature(4*3)
Sampling accuracy	± 2℃
Voltage Sampling accuracy	Single cell ±20mV
SOC	≤5%
Communication mode	CAN: 1 channel (communication with PCs / UPS) RS485: 1 channel (communication with upper computer / PCS / UPS) Bluetooth: optional (android app available) GPRS: optional
Display mode	6-digit LED indicator, including 1-bit fault indication, 1-bit operation indication, 4-bit SOC power indication HMI display: optional
Hall sensor specifications	100A
Maximum load of power components	Steady-state：100A transient state：150A/10S（ Adjustable）
Alarm level	1 Level
Protection level	2 two levels Level 1 cut off charge / discharge Level 2 micro cut-off switch, system power down
Operating Temperature	Charging : －10～75℃ Discharging : -20 to 75℃ Storage : -40 to +75℃

Product Features

High integration with minimal installation space requirements

Long life cycle (>3000 times at 80% DOD)

Environmentally friendly design without heavy metals

Maintenance free with no memory effect

Internal BMS with full protection and high voltage protection for enhanced reliability

Master and Slave all in one design

Applications

Company Profile

Hunan Group Control Energy Technology Co., Ltd. (GCE) is a high-tech company specializing in the research and development of BMS and lithium battery peripheral equipment. Our high-performance intelligent lithium battery management system adopts international leading technology, significantly improving battery management efficiency and prolonging lithium battery service life. Our advanced BMS control strategy overcomes difficulties and instability faced by most competitors.

Our product range includes 4S to 24s low voltage software BMS with wide applications and rich interfaces; 30s to 75s BMS with master-slave integrated design; and 60s-270s systems with master-slave three-level architecture for high-capacity single lithium batteries up to 1000V.
