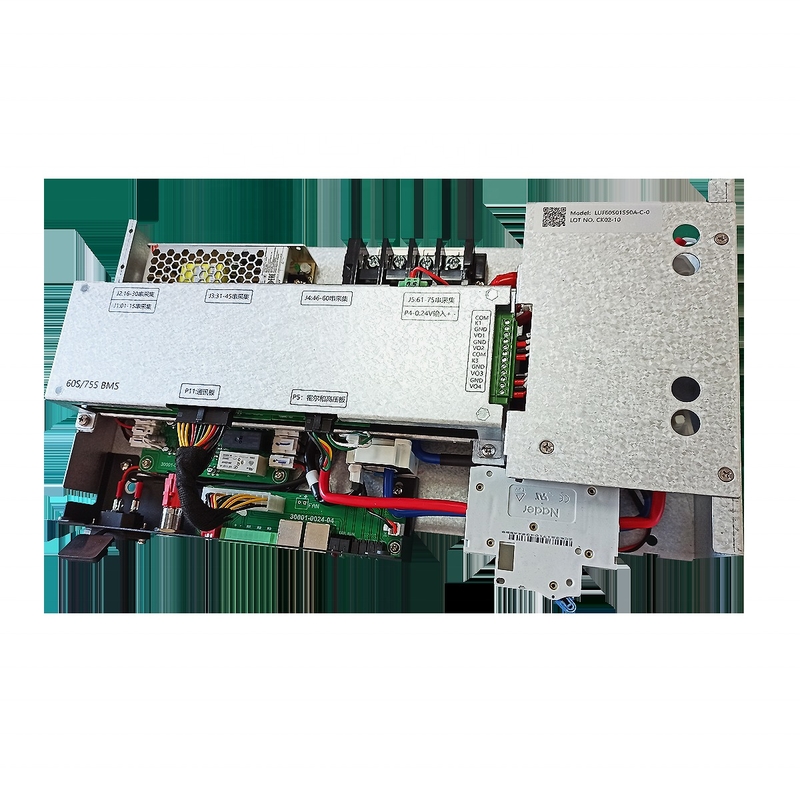

60S 192V LiFePO4 BMS 50A with RS485 CAN Passive Balance

Name: 60S 192V LiFePO4 BMS 50A with RS485 CAN Passive Balance
Brand: Hunan GCE Technology Co.,Ltd
SKU: RBMS0760S50A
Price: 504.00 USD
Availability: InStock

Produkt-Details

Herkunftsort: Hunan, China

Markenname: GCE

Modellnummer: RBMS0760S50A

Zahlungs-u. Verschiffen-Ausdrücke

Min Bestellmenge: 2

Preis: $468-540

Erhalten Sie besten Preis

Produkt-Details

Produkt-Beschreibung

Hervorheben:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                60S LiFePO4 BMS with RS485, 192V BMS with passive balance, 50A LiFePO4 battery management system


Spannungsbereich:	0-192V DC	Aktuell:	50a
Art der Bilanz:	Gleichstellung des passiven Widerstands	Gleichgewichtsstrom:	100 mA ± 10 mA
Temperaturabtastung:	12 Batterietemperatur	Probieren von Genauigkeit:	± 2℃
Spannungsgenauigkeit:	Einzelzelle ±20mV	Kommunikationsmöglichkeiten:	Can, RS485, Bluetooth, GPRS
Hallensensor:	50A/100A	Maximale Last:	Steady-State: 100a, transient: 150a/10s
Betriebstemperatur:	Ladung: -10 ～ 75 ℃, Entladung: -20 bis 75 ℃, Speicher: -40 bis +75 ℃	Anzahl der Saiten:	60S (4 X 15S)
Abmessungen:	W410 x H232 x d128cm	Schutzniveau:	2 Ebenen
Genauigkeit:	≤ 5%

Spannungsbereich:	0-192V DC
Aktuell:	50a
Art der Bilanz:	Gleichstellung des passiven Widerstands
Gleichgewichtsstrom:	100 mA ± 10 mA
Temperaturabtastung:	12 Batterietemperatur
Probieren von Genauigkeit:	± 2℃
Spannungsgenauigkeit:	Einzelzelle ±20mV
Kommunikationsmöglichkeiten:	Can, RS485, Bluetooth, GPRS
Hallensensor:	50A/100A
Maximale Last:	Steady-State: 100a, transient: 150a/10s
Betriebstemperatur:	Ladung: -10 ～ 75 ℃, Entladung: -20 bis 75 ℃, Speicher: -40 bis +75 ℃
Anzahl der Saiten:	60S (4 X 15S)
Abmessungen:	W410 x H232 x d128cm
Schutzniveau:	2 Ebenen
Genauigkeit:	≤ 5%

60S 192V LiFePO4 BMS 50A with RS485 CAN Passive Balance

60S 192V LiFePO4 Battery Management System (BMS) 50A Charging Voltage with RS485 CAN Communication Passive Balance

Communication protocol: CAN, RS485, Bluetooth, GPRS, Dry Contact

Design: Master & Slave all in one
Efficient, stable and reliable
Size: W410 × H232 × D128cm

Unique Design

This is the latest product developed by GCE and it's unique in the market.

For 30S-75S Lithium Battery Packs

Integrated BMS supports 30S-75S lithium battery packs. The 30s to 75s BMS adopts master-slave integrated design and relay solution to meet the lithium battery demand of multiple strings of small capacity batteries less than 100Ah, greatly reducing user costs.

Specification

Product Name	Integrated BMS (master slave together in one)
Model no.	RBMS07S60S50A
System voltage range	0 - 192 V DC
Startup mode	DC start (optional AC and DC starter)
Number of battery strings	60 S (4 x 15 S)
Balance	Balance type: Passive resistance equalization Balanced current: 100mA ± 10mA (Single cell 3.4V)
Temperature Sampling	Numbers: 12 Battery temperature (4×3) Sampling accuracy: ± 2℃
Voltage Sampling	Sampling accuracy: Single cell ±20mV
SOC	≤5%
Communication mode	CAN: 1 channel (communication with PCs / UPS) RS485: 1 channel (communication with upper computer / PCS / UPS) Bluetooth: optional (android app available) GPRS: optional
Display mode	6-digit LED indicator, including 1-bit fault indication, 1-bit operation indication, 4-bit SOC power indication HMI display: optional
Hall sensor specifications	50A/100A
Maximum load of power components	Steady-state: 100A Transient state: 150A/10S (Adjustable)
Alarm level	1 Level
Protection level	2 two levels Level 1 cut off charge / discharge Level 2 micro cut-off switch, system power down
Operating Temperature	Charging: －10～75℃ Discharging: -20 to 75℃ Storage: -40 to +75℃

Product Features

High integration with less installation space
Long life cycle, >3000 times at 80% DOD
Environmentally friendly with no heavy metals
Maintenance free with no memory effect
Internal BMS with full protection and high voltage protection for higher reliability
Master and Slave all in one design

Application

Company Profile

Hunan Group Control Energy Technology Co., Ltd. (GCE) is a high-tech company specializing in the research and development of BMS and lithium battery peripheral equipment. Our high-performance intelligent lithium battery management system adopts international leading technology, improving battery management efficiency and prolonging lithium battery service life. Our advanced BMS control strategy overcomes difficulties faced by competitors.

Our product range includes 4S to 24s low voltage software BMS with rich interfaces and strong scalability; 30s to 75s BMS with master-slave integrated design for small capacity batteries; and 60s-270s master-slave three-level architecture for high-capacity single lithium batteries up to 1000V.
