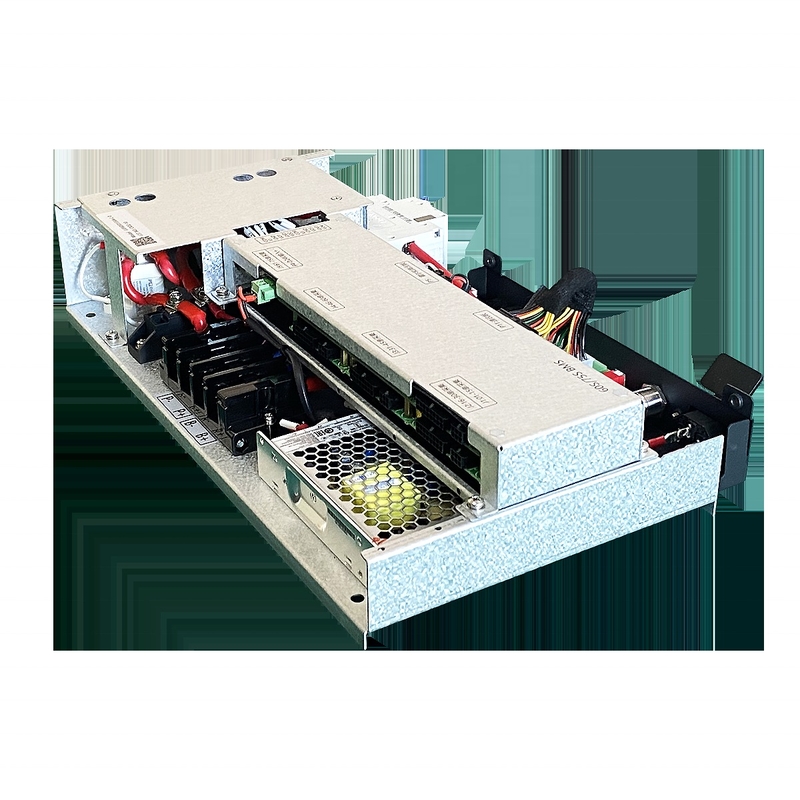

GCE 45S 100A 144V Lithium BMS for Lifepo4 Battery Pack

Name: GCE 45S 100A 144V Lithium BMS for Lifepo4 Battery Pack
Brand: Hunan GCE Technology Co.,Ltd
SKU: RBMS07S45S100A
Price: 556.00 USD
Availability: InStock

Produkt-Details

Herkunftsort: Hunan, China

Markenname: GCE

Modellnummer: RBMS07S45S100A

Zahlungs-u. Verschiffen-Ausdrücke

Min Bestellmenge: 2

Preis: $542-571

Erhalten Sie besten Preis

Produkt-Details

Produkt-Beschreibung

Hervorheben:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Lithium BMS for Lifepo4 battery, 100A 144V battery management system, GCE 45S BMS with warranty


Systemspannung:	0 - 144V DC	Startmodus:	DC -Start (optionaler AC- und DC -Starter)
Batterie-Streifen:	45 s （3x 15 s）	Art der Bilanz:	Gleichstellung des passiven Widerstands
Ausgeglichener Strom:	100 mA ± 10 mA (Einzelzelle 3,4 V)	Temperaturabtastung:	12 Batterietemperatur (4*3)
Probieren von Genauigkeit:	± 2℃	Spannungsgenauigkeit:	Einzelzelle ±20mV
Kommunikationsmöglichkeiten:	Can, RS485, Bluetooth, GPRS, trockener Kontakt	Hallensensor:	50A/100A
Maximale Last:	Steady-State: 100A, transienter Zustand: 150a/10s (einstellbar)	Betriebstemperatur:	Ladung: -10 ～ 75 ℃, Entladung: -20 bis 75 ℃, Speicher: -40 bis +75 ℃
Abmessungen:	W410H232D128CM	Gewicht:	8 kg
Genauigkeit:	≤ 5%

Systemspannung:	0 - 144V DC
Startmodus:	DC -Start (optionaler AC- und DC -Starter)
Batterie-Streifen:	45 s （3x 15 s）
Art der Bilanz:	Gleichstellung des passiven Widerstands
Ausgeglichener Strom:	100 mA ± 10 mA (Einzelzelle 3,4 V)
Temperaturabtastung:	12 Batterietemperatur (4*3)
Probieren von Genauigkeit:	± 2℃
Spannungsgenauigkeit:	Einzelzelle ±20mV
Kommunikationsmöglichkeiten:	Can, RS485, Bluetooth, GPRS, trockener Kontakt
Hallensensor:	50A/100A
Maximale Last:	Steady-State: 100A, transienter Zustand: 150a/10s (einstellbar)
Betriebstemperatur:	Ladung: -10 ～ 75 ℃, Entladung: -20 bis 75 ℃, Speicher: -40 bis +75 ℃
Abmessungen:	W410H232D128CM
Gewicht:	8 kg
Genauigkeit:	≤ 5%

GCE 45S 100A 144V Lithium BMS for Lifepo4 Battery Pack

GCE Unique Design 45S 100A Lithium Battery Management System 144V BMS for Lifepo4 Battery Pack

45S 100Amp

Communication protocol: CAN, RS485, Bluetooth, GPRS, Dry Contact

Design: Master & Slave all in one
Efficient, stable and reliable
Size: W410*H232*D128cm

Unique Design

This is the latest product developed by GCE and it's unique in the market.

For 30S-75S Lithium Battery Packs

Integrated BMS supports 30S-75S lithium battery packs. 30s to 75s BMS adopts master-slave integrated design and relay solution to meet the lithium battery demand of multiple strings of small capacity batteries less than 100Ah. It greatly reduces the cost for users.

Specification

Product Name	Integrated BMS (master slave together in one)
Model no.	RBMS07S45S100A
System voltage range	0 - 144V DC
Startup mode	DC start (optional AC and DC starter)
Number of battery strings	45 S（3x 15 S）
Balance	Balance type: Passive resistance equalization Balanced current: 100mA ± 10mA (Single cell 3.4V)
Temperature Sampling	Numbers: 12 Battery temperature (4*3) Sampling accuracy: ± 2℃
Voltage Sampling	Sampling accuracy: Single cell ±20mV
SOC	≤5%
Communication mode	CAN: 1 channel (communication with PCs / UPS) RS485: 1 channel (communication with upper computer / PCS / UPS) Bluetooth: optional (android app available) GPRS: optional
Display mode	6-digit LED indicator, including 1-bit fault indication, 1-bit operation indication, 4-bit SOC power indication HMI display: optional
Hall sensor specifications	50A/100A
Maximum load of power components	Steady-state：100A transient state：150A/10S（ Adjustable）
Alarm level	1 Level
Protection level	2 two levels Level 1 cut off charge / discharge Level 2 micro cut-off switch, system power down
Operating Temperature	Charging : －10～75℃ Discharging : -20 to 75℃ Storage : -40 to +75℃

Product Features

High integrated design with less installation space
Long life cycle, >3000 times at 80% DOD
Environmentally friendly with no heavy metals
Maintenance free with no memory effect
Internal BMS with full protection including high voltage protection for higher reliability
Master and Slave all in one design

Application

Company Profile

Hunan Group Control Energy Technology Co., Ltd. (GCE) is a high-tech company specializing in the research and development of BMS and lithium battery peripheral equipment. The high-performance intelligent lithium battery management system produced by our company adopts international leading technology, which greatly improves battery management efficiency and prolongs the service life of lithium batteries. The advanced BMS control strategy avoids the difficulties and instability faced by most competitors.

Our product range includes 4S to 24s low voltage software BMS with wide applications, rich interfaces, and strong scalability; 30s to 75s BMS with master-slave integrated design; and 60s-270s systems with master-slave three-level architecture for high-capacity lithium batteries up to 1000V.
