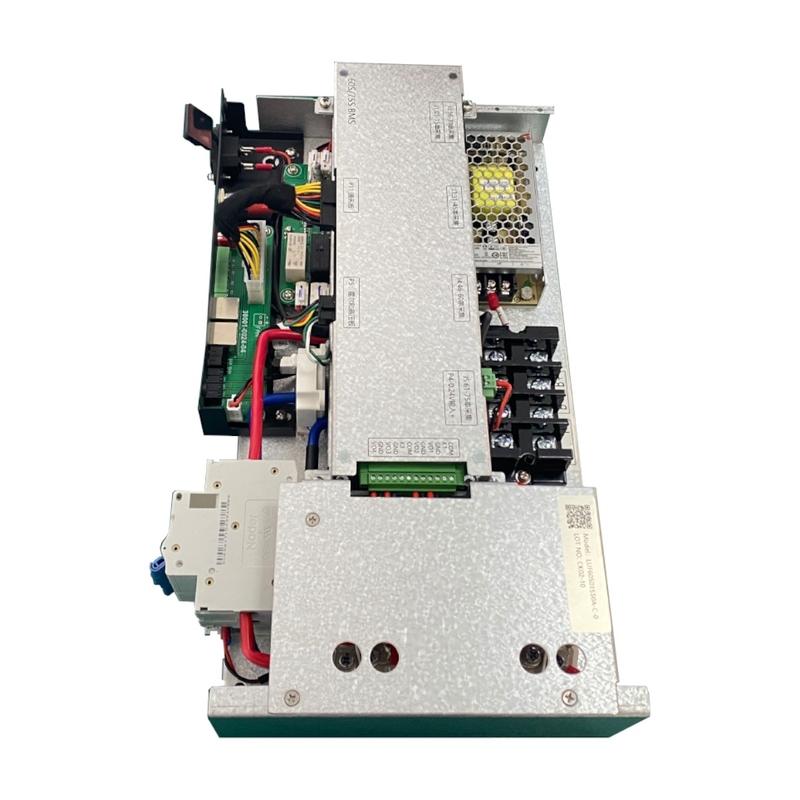

GCE 192V 100A Integrated BMS for Solar Storage and Golf Carts

Name: GCE 192V 100A Integrated BMS for Solar Storage and Golf Carts
Brand: Hunan GCE Technology Co.,Ltd
SKU: RBMS07S60S100A, 60S
Price: 580.50 USD
Availability: InStock

Produkt-Details

Herkunftsort: Hunan, China

Markenname: GCE

Modellnummer: RBMS07S60S100A, 60S

Zahlungs-u. Verschiffen-Ausdrücke

Min Bestellmenge: 5

Preis: $533.50-628.10

Erhalten Sie besten Preis

Produkt-Details

Produkt-Beschreibung

Hervorheben:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                192V 100A integrated BMS, solar storage BMS with warranty, golf cart battery management system


Stromspannung:	192V	Aktuell:	50A/100A
Saiten:	30er bis 75er	Kommunikation:	CAN, RS485
Größe:	410232128mm	Systemspannungsbereich:	120 - 228 V-DC
Anzahl der Saiten:	60 S (4 x 15 S)	Art der Bilanz:	Gleichstellung des passiven Widerstands
Ausgeglichener Strom:	100 mA ± 10 mA	Temperaturabtastung:	12 Batterietemperatur (4*3)
Probieren von Genauigkeit:	± 2℃	Spannungsrepräsentativgenauigkeit:	± 20mV
Hallensensor:	50A/100A	Maximale Last:	100A Steady State, 150A/10s Transient
Betriebstemperatur:	Ladung: -10 ～ 75 ℃, Entladung: -20 bis 75 ℃, Speicher: -40 bis +75 ℃

Stromspannung:	192V
Aktuell:	50A/100A
Saiten:	30er bis 75er
Kommunikation:	CAN, RS485
Größe:	410232128mm
Systemspannungsbereich:	120 - 228 V-DC
Anzahl der Saiten:	60 S (4 x 15 S)
Art der Bilanz:	Gleichstellung des passiven Widerstands
Ausgeglichener Strom:	100 mA ± 10 mA
Temperaturabtastung:	12 Batterietemperatur (4*3)
Probieren von Genauigkeit:	± 2℃
Spannungsrepräsentativgenauigkeit:	± 20mV
Hallensensor:	50A/100A
Maximale Last:	100A Steady State, 150A/10s Transient
Betriebstemperatur:	Ladung: -10 ～ 75 ℃, Entladung: -20 bis 75 ℃, Speicher: -40 bis +75 ℃

GCE 192V 100A Integrated BMS for Solar Storage and Golf Carts

GCE High Voltage 192V 100A Integrated BMS Smart Battery Management System for BESS UPS 60S

Product Overview

Highly integrated design with minimal installation space requirements
Long life cycle exceeding 3000 cycles at 80% depth of discharge
Environmentally friendly with no heavy metals
Maintenance-free operation with no memory effect
Integrated BMS with comprehensive protection features including high voltage protection
Combined master and slave functionality in a single unit

Technical Specifications

Basic Parameters

Model Number	RBMS07S60S100A
System Voltage Range	120 - 228 V DC
Startup Mode	DC start (optional AC and DC starter)
Number of Battery Strings	60 S (4 x 15 S)
Balance Type	Passive resistance equalization
Balanced Current	100mA ± 10mA (Single cell 3.4V)

Monitoring & Communication

Temperature Sampling Points	12 (4*3 battery temperature)
Temperature Accuracy	± 2℃
Voltage Sampling Accuracy	±20mV per cell
Communication Interfaces	CAN (1 channel), RS485 (1 channel), Optional Bluetooth, Optional GPRS

Display & Indicators

Display	6-digit LED indicator (fault, operation, 4-bit SOC)
HMI Display	Optional

Performance & Protection

Hall Sensor Specifications	50A/100A
Maximum Load	100A steady-state, 150A/10S transient (adjustable)
Protection Levels	2 levels: Level 1 cuts off charge/discharge, Level 2 powers down system

Environmental Specifications

Operating Temperature (Charging)	-10 to 75℃
Operating Temperature (Discharging)	-20 to 75℃
Storage Temperature	-40 to +75℃

Product Details

Item	Value
Place of Origin	China, Hunan
Applications	Solar Energy Storage Systems, Electric Forklifts, Golf Carts
Brand Name	GCE
Model	BMS (Battery Management System)
Design	Slave and master BMS all in one
Voltage	240V
Current	50A/100A
Strings	30s-75s
Communication	CAN, RS485
Size	410232128mm
Battery Type	Lithium iron phosphate battery
Warranty	3 years

Product Images

Packing & Delivery

Packaging options include corrugated carton, bundles, pallets, and wooden box.

Company Profile

Hunan GCE Technology Co., Ltd. (GCE) is a high-tech company specializing in the research and development of BMS and lithium battery peripheral equipment. Our high-performance intelligent lithium battery management systems use international leading technology to improve battery management efficiency and extend lithium battery service life. Our advanced BMS control strategy provides solutions to difficulties faced by competitors. Our product range includes 4S to 24S low voltage software BMS with rich interfaces and scalability, 30S to 75S master-slave integrated BMS with relay solutions, and 60S-270S three-level architecture systems for high-capacity applications up to 1000V.

Frequently Asked Questions

1. Who are we?

We are based in Hunan, China, established in 2012, with 51-100 employees. Our products are sold globally to South Asia (25%), Southeast Asia (12%), South America (9%), Western Europe (7%), and other regions.

2. How can we guarantee quality?

We provide pre-production samples before mass production and conduct final inspections before shipment.

3. What can you buy from us?

BMS products including high voltage BMS, integrated BMS, relay BMS, and BESS/UPS solutions.

4. Why should you buy from us?

With over 10 years of BMS R&D experience, we master core technologies to provide reliable, stable, and efficient lithium battery energy management solutions.

5. What services can we provide?

We accept FOB and EXW delivery terms, payment in USD/EUR/CNY via T/T or L/C, and support multiple languages including English, Chinese, Japanese, German, French, Russian, and Korean.
