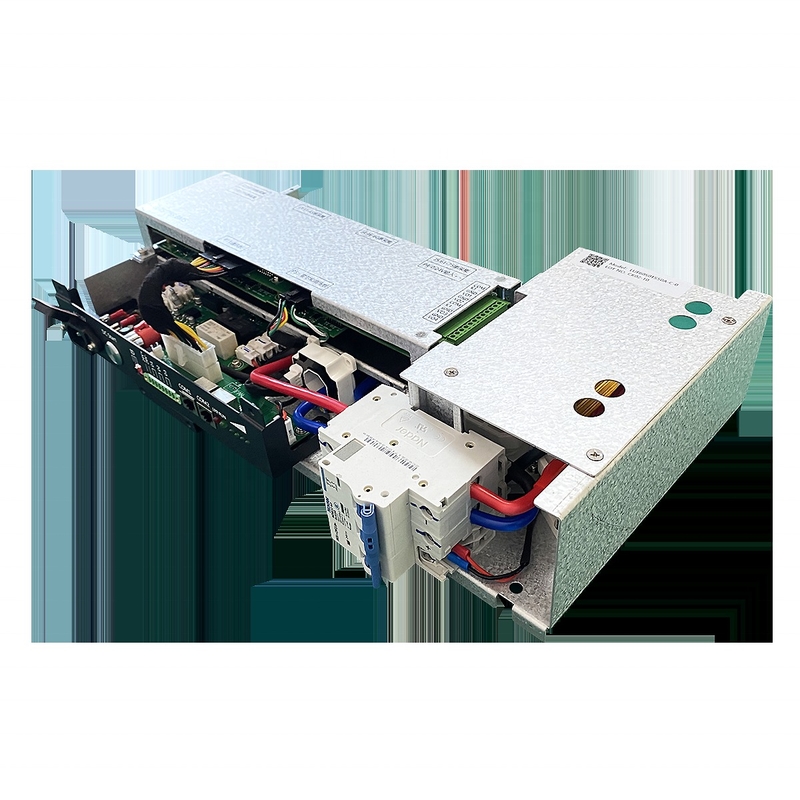

GCE 45S 144V 100A Lifepo4 BMS for Solar Energy Storage Systems

Name: GCE 45S 144V 100A Lifepo4 BMS for Solar Energy Storage Systems
Brand: Hunan GCE Technology Co.,Ltd
SKU: RBMS07S45S100A, 4
Price: 580.50 USD
Availability: InStock

Produkt-Details

Herkunftsort: Hunan, China

Markenname: GCE

Modellnummer: RBMS07S45S100A, 4

Zahlungs-u. Verschiffen-Ausdrücke

Min Bestellmenge: 2

Preis: $533.50-628.10

Erhalten Sie besten Preis

Produkt-Details

Produkt-Beschreibung

Hervorheben:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Lifepo4 BMS for solar storage, 144V 100A Lifepo4 BMS, Integrated BMS with warranty


Modell:	RBMS07S45S100A	Akku-Typ:	Lifepo4/Lithium-Batterie
Systemspannung:	120 - 228 V-DC	Batterie-Streifen:	45S
Gleichgewichtsstrom:	100 mA ± 10 mA	Entladungstemperatur:	-20 bis 75 °C
Ladetemperatur:	-10 bis 75 °C	Kommunikationsprotokoll:	Can, RS485, Bluetooth, GPRS, trockener Kontakt
Abmessungen:	W410H232D128CM	Temperaturabtastung:	12 Batterietemperatur (4*3)
Probieren von Genauigkeit:	± 2℃	Spannungsgenauigkeit:	Einzelzelle ±20mV
Hallensensor:	50A/100A	Maximale Last:	Steady-State: 100A, vorübergehender Zustand: 150a/10s
Lagertemperatur:	-40 zu +75℃

Modell:	RBMS07S45S100A
Akku-Typ:	Lifepo4/Lithium-Batterie
Systemspannung:	120 - 228 V-DC
Batterie-Streifen:	45S
Gleichgewichtsstrom:	100 mA ± 10 mA
Entladungstemperatur:	-20 bis 75 °C
Ladetemperatur:	-10 bis 75 °C
Kommunikationsprotokoll:	Can, RS485, Bluetooth, GPRS, trockener Kontakt
Abmessungen:	W410H232D128CM
Temperaturabtastung:	12 Batterietemperatur (4*3)
Probieren von Genauigkeit:	± 2℃
Spannungsgenauigkeit:	Einzelzelle ±20mV
Hallensensor:	50A/100A
Maximale Last:	Steady-State: 100A, vorübergehender Zustand: 150a/10s
Lagertemperatur:	-40 zu +75℃

GCE 45S 144V 100A Lifepo4 BMS for Solar Energy Storage Systems

GCE BMS 45S 144V 100A Lifepo4 Cell BMS Master Slave UPS BESS 50kwh-200kwh Solar Power Energy Storage System

30-60S 100Amp System

Communication protocol: CAN, RS485, Bluetooth, GPRS, Dry Contact

Design: Master & Slave all in one
Efficient, stable and reliable
Dimensions: W410 × H232 × D128cm

Unique Design

This is the latest product developed by GCE, featuring a unique market design.

For 30S-75S Lithium Battery Packs

Integrated BMS supports 30S-75S lithium battery packs with master-slave integrated design and relay solution, ideal for multiple strings of small capacity batteries (less than 100Ah), significantly reducing user costs.

Specifications

Product Name	Integrated BMS (master slave together in one)
Model no.	RBMS07S45S100A
System voltage range	120 - 228 V DC
Startup mode	DC start (optional AC and DC starter)
Number of battery strings	60 S (4 x 15 S) revised to 45S
Balance	Balance type: Passive resistance equalization Balanced current: 100mA ± 10mA (Single cell 3.4V)
Temperature Sampling	Numbers: 12 Battery temperature (4×3) Sampling accuracy: ± 2℃
Voltage Sampling	Sampling accuracy: Single cell ±20mV
SOC	≤5%
Communication mode	CAN: 1 channel (communication with PCs / UPS) RS485: 1 channel (communication with upper computer / PCS / UPS) Bluetooth: optional (android app available) GPRS: optional
Display mode	6-digit LED indicator, including 1-bit fault indication, 1-bit operation indication, 4-bit SOC power indication HMI display: optional
Hall sensor specifications	50A/100A
Maximum load of power components	Steady-state: 100A Transient state: 150A/10S (Adjustable)
Alarm level	1 Level
Protection level	2 two levels Level 1 cut off charge/discharge Level 2 micro cut-off switch, system power down
Operating Temperature	Charging: -10 to 75℃ Discharging: -20 to 75℃ Storage: -40 to +75℃

Product Features

Highly integrated design with minimal installation space requirements
Long life cycle: >3000 times at 80% DOD
Environmentally friendly with no heavy metals
Maintenance free with no memory effect
Internal BMS with full protection including high voltage protection for enhanced reliability
Master and Slave all in one unit

Applications

Company Profile

Hunan Group Control Energy Technology Co., Ltd. (GCE) is a high-tech company specializing in the research and development of BMS and lithium battery peripheral equipment. Our high-performance intelligent lithium battery management system uses international leading technology to improve battery management efficiency and extend lithium battery service life. Our advanced BMS control strategy overcomes difficulties faced by competitors.

Our product range includes 4S to 24S low voltage software BMS with rich interfaces and strong scalability; 30S to 75S BMS with master-slave integrated design for small capacity batteries; and 60S-270S systems with master-slave three-level architecture for high-capacity single lithium batteries up to 1000V.
